รายละเอียดสินค้า

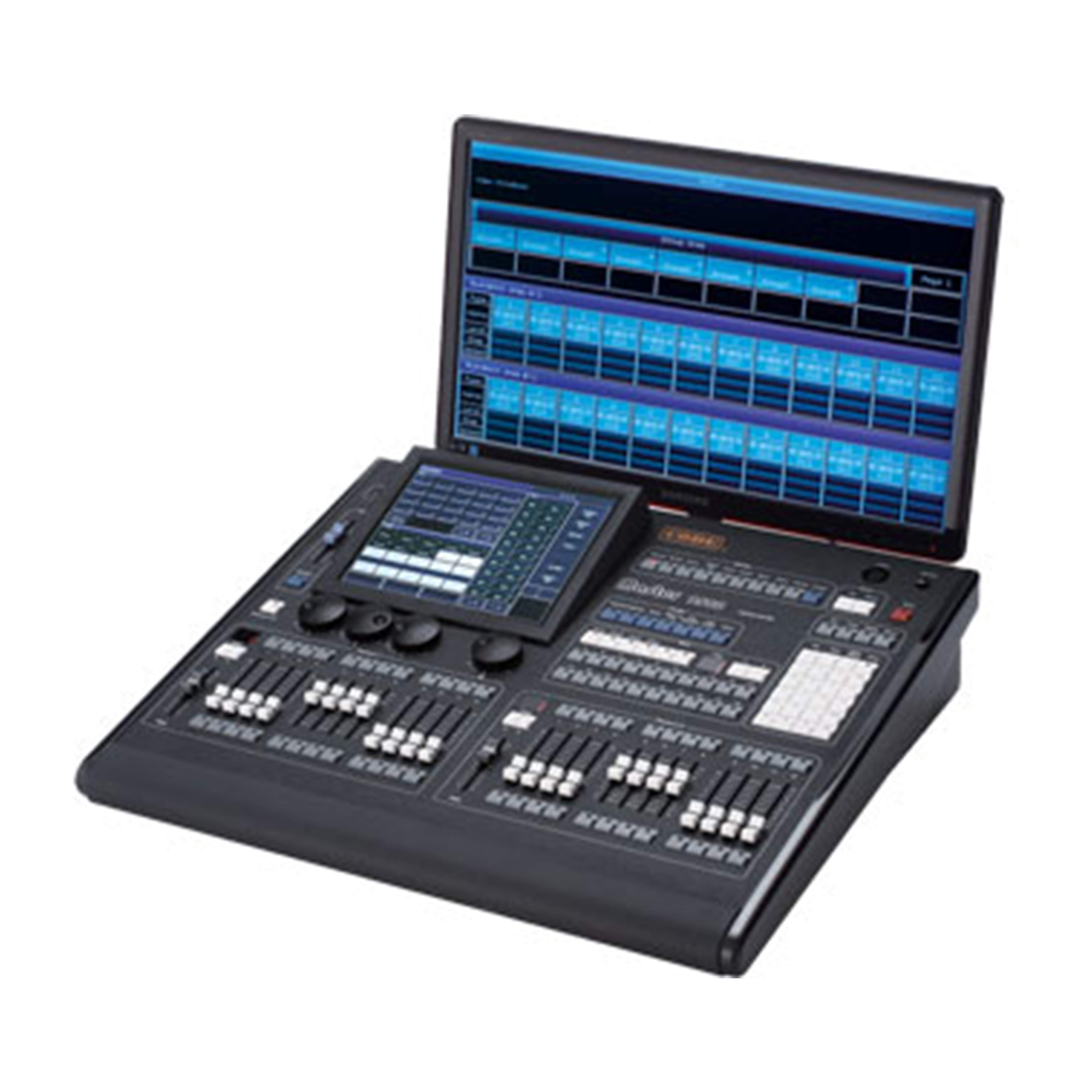

Total 3072 channels with 6 individual optical isolated DMX outputs.
· Maximum 400 Units for patching all kinds of Fixtures.
· Fixtures within 80 channels are available.
· 10.4″ TFT-LCD touch screen for operating.
· Offers a VGA interface for external monitor to display more edited information.
· Up to 1120 playbacks can be programmed which controlled by 24 playback faders×30 pages together with 20 playback keys×20 pages. Totally 44 playbacks can be run at the same time. (with 24 playbacks by faders and 20 playbacks by keys.)
· Offers 4 optical encoders for details’ setting.
· Up to 400 Groups.
· Up to 400 Presets.
· Up to 400 Macro Shows can be saved which allow to be triggered by external MIDI time code or internal clock.
· Up to 400 User-Defined Shape Effects.
· Shortcut area provides a quick way for selecting Fixtures, Groups, Presets or Custom Shape Effects.
· Color-mix system provides a color palette for users to control fixtures with RGB or CMY channels conveniently.
· Shape Generator provides various effects which can be modified with different parameters. User-Defined Shape Effects can be saved for convenient calling out again.
· Provides 5 levels of precedence for playbacks.
· Chases can be paused separated.
· Divided into two sections as, Playback A and Playback B. Allows playbacks on Playback A or B stand by output.
· Pre-locate and flash function for playbacks.
· Windows on touch screen can be changed into other display options.
· Provide over 8000 Libraries in system. Enable users to edit System Library or create custom Library. R20 library files can be loaded in as the custom library.
· Support multiple DMX network protocols. DMX 512 signal can be transmitted over network.
· Freely download Upgrade Version and System Library.
· An internal electronic disk allows user to backup show data.
· USB interface allows users to backup shows in external disk.
· Music trigger function.
· Blackout function.
· Provide MIDI in and out interfaces to connect and work with other consoles.
· Option: 12V auxiliary light.
· Power supply: AC100-240V, 50-60Hz.
· Size: 650mm×490mm×130mm.
· Net weight: 13kg approx.
