Angel Eye LED Pixel Beam 12x15w + 1x60w

รายละเอียดสินค้า

INTRODUCTION

Ligtht Source: 12pcs 15w +1pc 60w RGBW Cree LED
Voltage: AC100-240V, 50/60Hz
DMX Channel: 24/64 Channels
Control Mode: DMX512, Auto Mode and Sound
Display: LCD display+key
Motor: pan/tilt motor, ultra-silent, 3-phase step motors
Dimmer: 0-100% soomth electronicdimming
Power Consumption: 250w

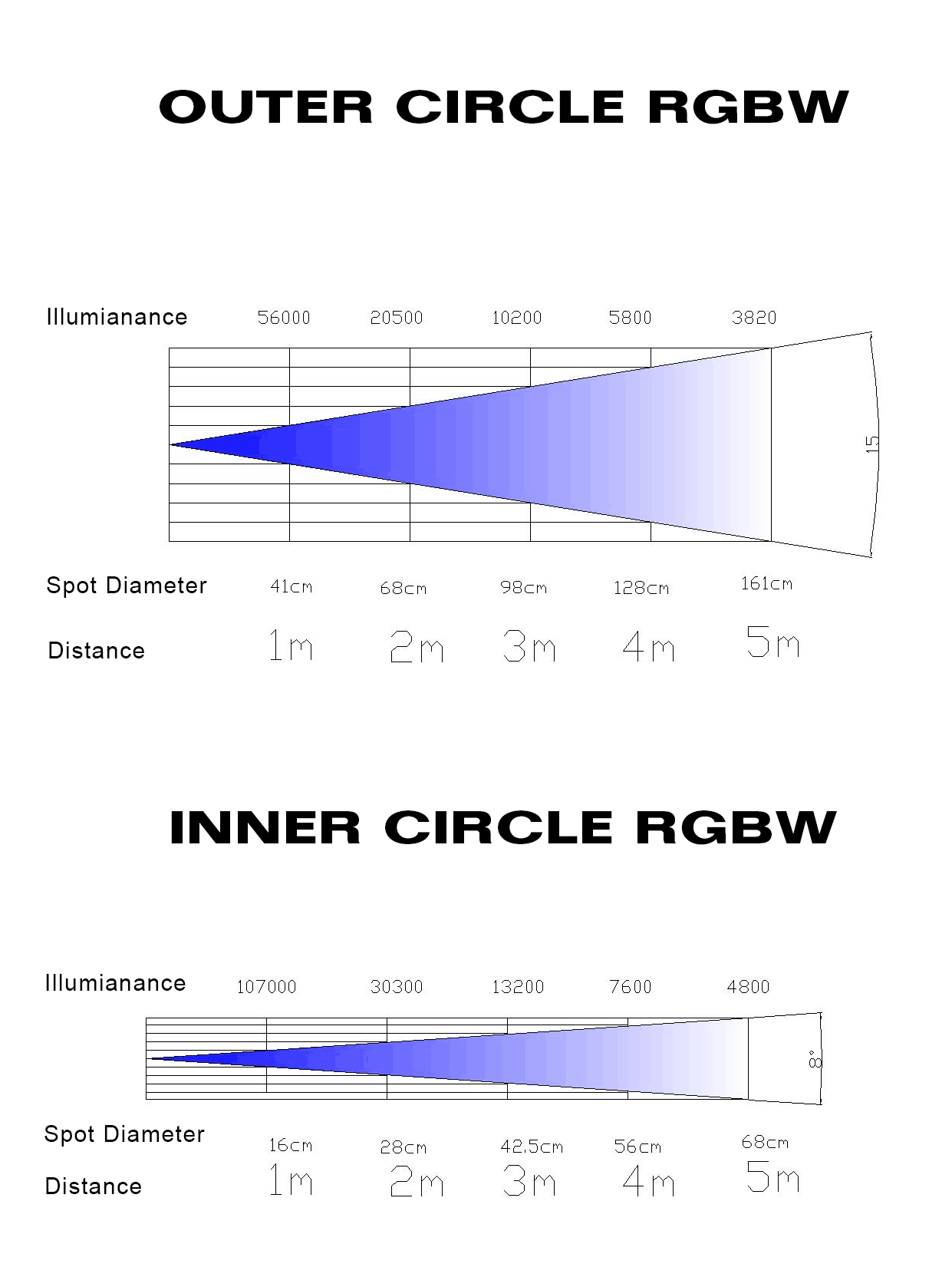

Beam Angle: 60W LED 4° +12*15w 10°, pixel control and individual pixel control
Pan 0-540°,Tilt 0-270°
IP: IP20

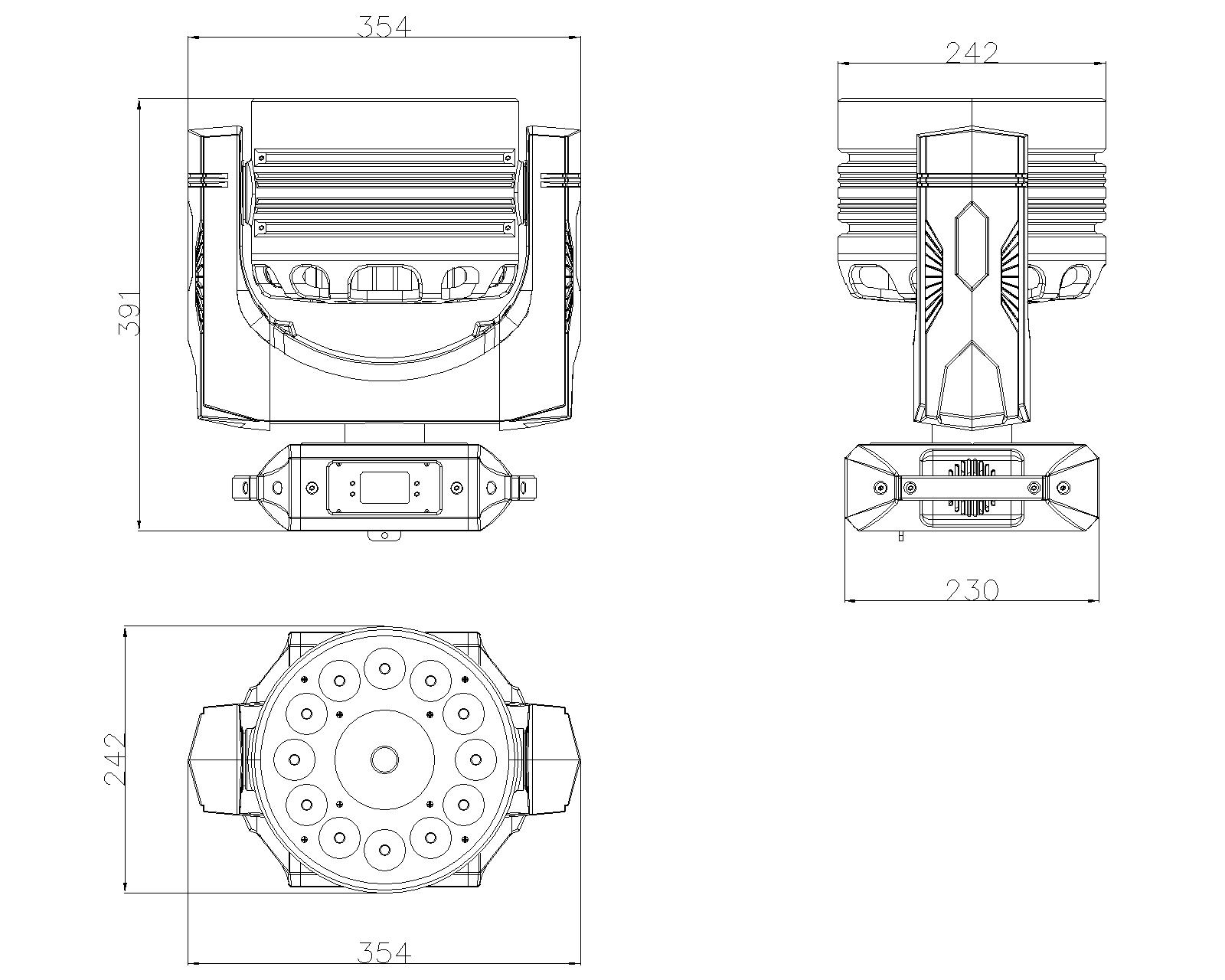

Size:354*342*391mm
Net Weight:9.05Kg
Certification: CE, RoHS, TUV and SGS

24 CHANNEL

Channel No. Function
1 Pan 0-255 Pan
2 Pan fine 0-255 16BIT
3 Tilt 0-255 Tilt
4 Tilt fine 0-255 16BIT
5 Pan&Tilt Speed 0-255 Adjust speed(slow→fast)
6 Dimmer 0-255 Dimmer(dark→bright)
7 Shutter 0-255 Shutter effect (software is being added)
8 Main bulbs -Red 0-255 Linear(dark→bright)
9 Main Bulbs-Green 0-255 Linear(dark→bright)
10 Main Bulbs-Blue 0-255 Linear(dark→bright)
11 Main Bulbs-White 0-255 Linear(dark→bright)
12 Main Bulbs-Color Mix 0-255 Main bulbs color mix(slow→fast)
13 12pcs outer circle bulbs 0-255 Mix speed(slow→fast)
14 Outer circle effect macro function 0-255
15 Outer circle effect adjust speed 0-255 Effect speed(slow→fast)
16Reset 250-255 Reset
17 Outer circle 12pcs-Red 0-255 Red  Linear(dark→bright)
18 Outer circle 12pcs-Green 0-255 Green  Linear(dark→bright)
19 Outer circle 12pcs-Blue 0-255 Aura Speed(fast→slow)
20 Outer 12pcs-White 0-1

2-64

65-127

 Aura Speed(fast→slow)
21 Outer circle macro function-Aura Red 0-255 Linear(dark→bright)
22 Outer circle macro function-Aura Green 0-255 Linear(dark→bright)
23 Outer circle macro function-Aura Blue 0-255 Linear(dark→bright)
24 Outer circle macro function-Aura white 0-255 Linear(dark→bright)
